CCTV Inspection & Cleaning

Clean and CCTV

Mainline Evaluation:
  • Clean and CCTV
  • Smoke Testing
  • Flow Monitoring
  • Dye Testing
  • PACP
Suncoast Infrastructure, Inc. - A complete pipeline evaluation and solutions company for today's infrastructure!

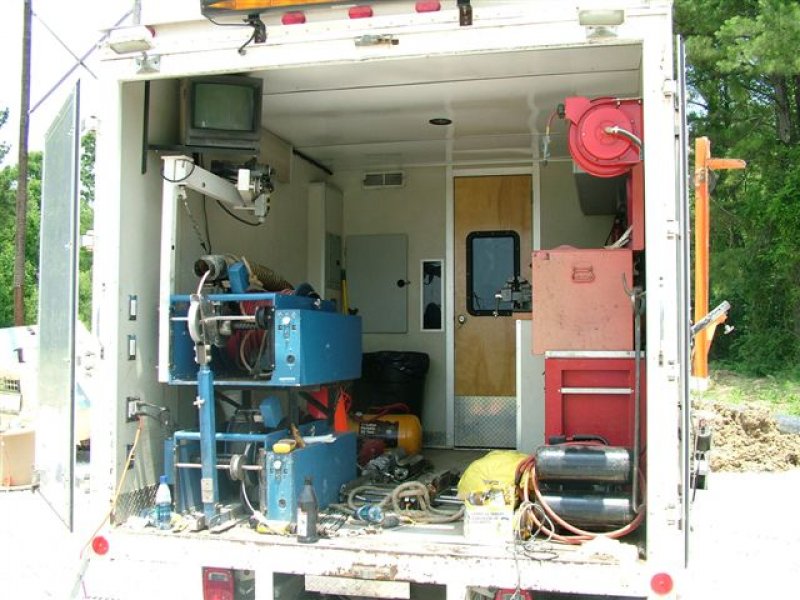

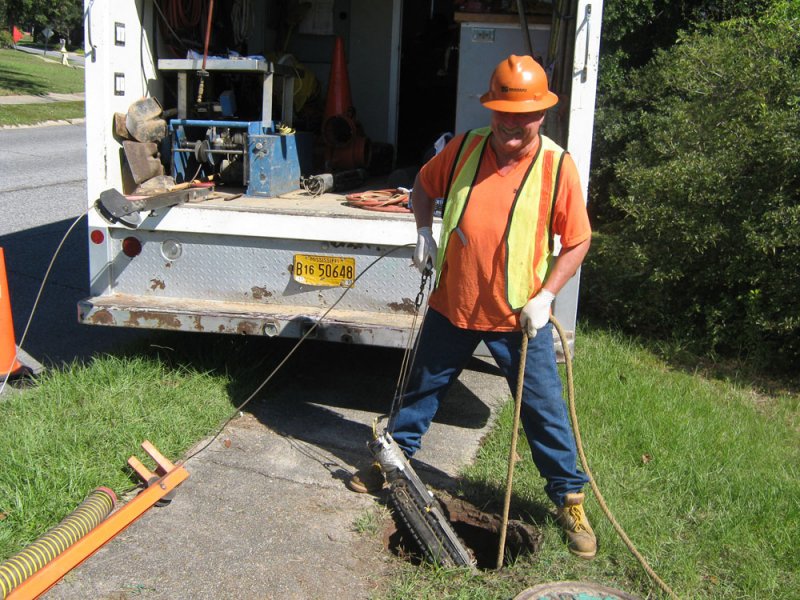

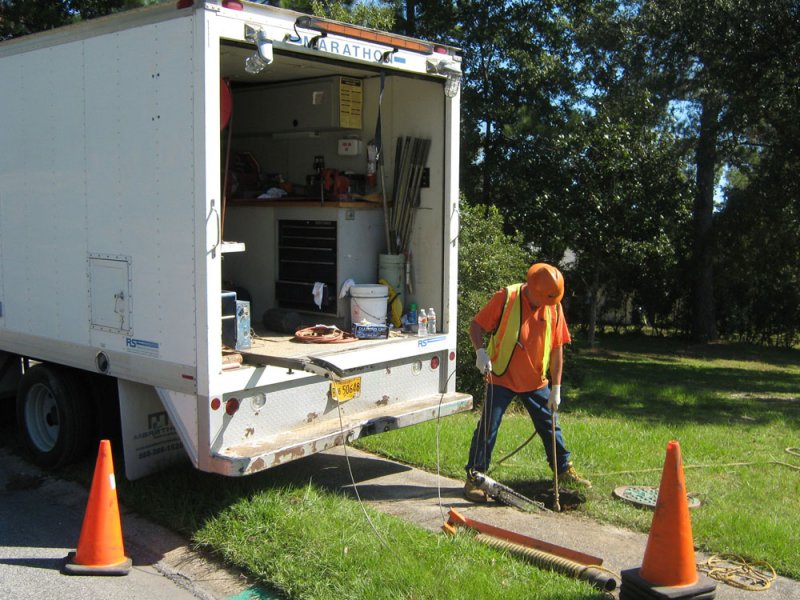

Suncoast Infrastructure is proud to offer closed circuit television inspection services to assist you in the evaluation of your piping systems. Our remote controlled cameras can quickly inspect pipe sizes 6" and larger using manholes or other available access points. The video footage is then evaluated and logged by a trained expert. You will be presented with a video tape and a report which will include a description of each pipe section evaluated. The log will indicate any serious problems and it will also provide recommendations for the rehabilitation, if required. Typical CCTV inspections can point out the structural condition of the pipe, evidence of infiltration and inflow, maintenance requirements including presence of roots, grease and debris, illegal tie-ins, and even potentially hazardous underground conditions.

Click here to view a sample report.

Sample CCTV Inspection Specifications
Sample Smoke Testing Specifications

Starting A CCTV Inspection Program In Your System:

Items to be budgeted for:

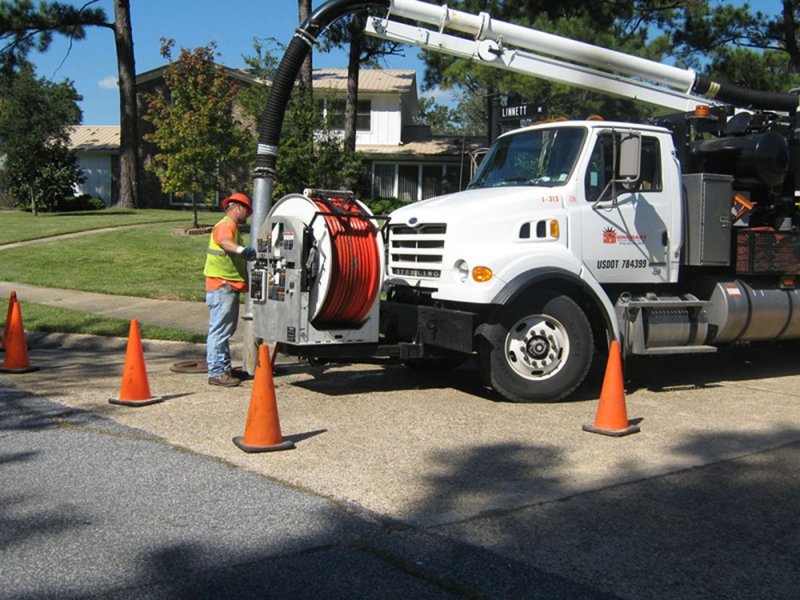

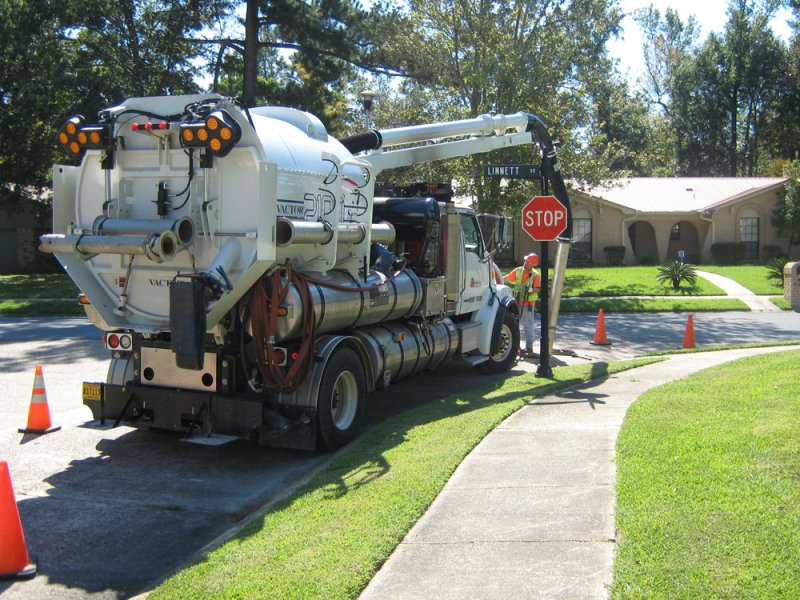

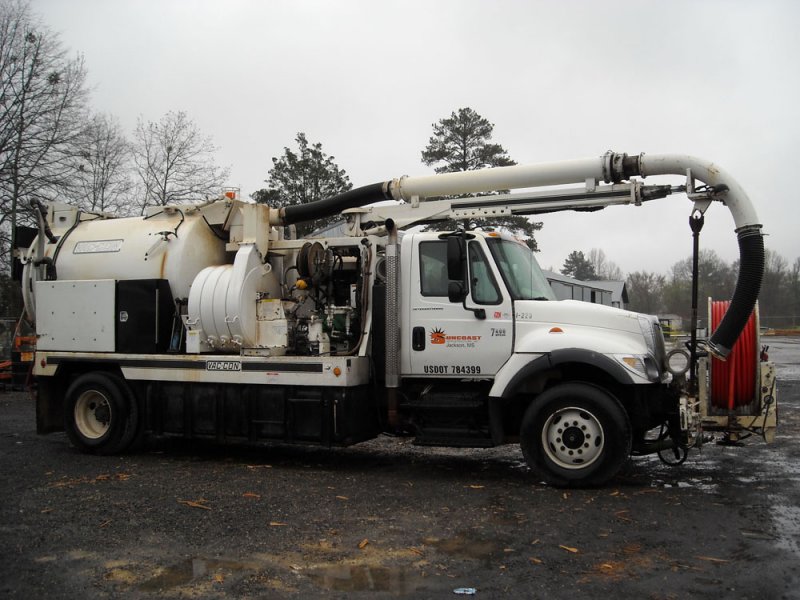

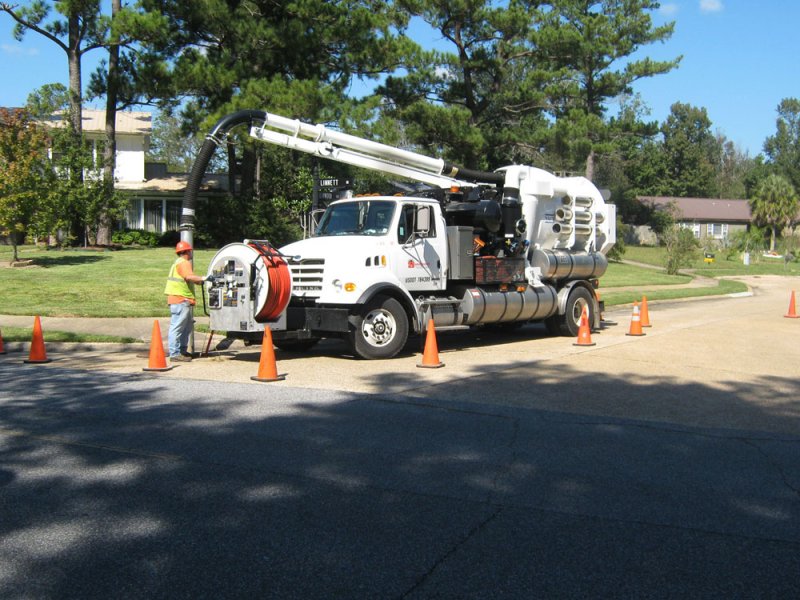

  • Normal cleaning - 2 passes with a jetter hose (priced out per linear foot).
  • Heavy cleaning - More than 2 passes (priced out per linear foot).
  • Root removal - depends on the diameter of the pipe (priced out per linear foot).
  • Remove protruding taps - per ea.
  • CCTV - priced per linear foot.
  • Reverse set ups - per ea.
  • Uncovering of manholes - thru another contractor or owner.
Potential Problems that will prevent completion of segment:
  1. Blockage in line
  2. Collapsed pipe
  3. Severe offset joints
  4. Protruding service
  5. Root intrusion
  6. Holes in pipe
  7. Sags in pipe that hold water/unable to dewater
  8. Heavy infiltration and inflow
  9. Unable to locate manhole
  10. High sewage flow
Expect to get:

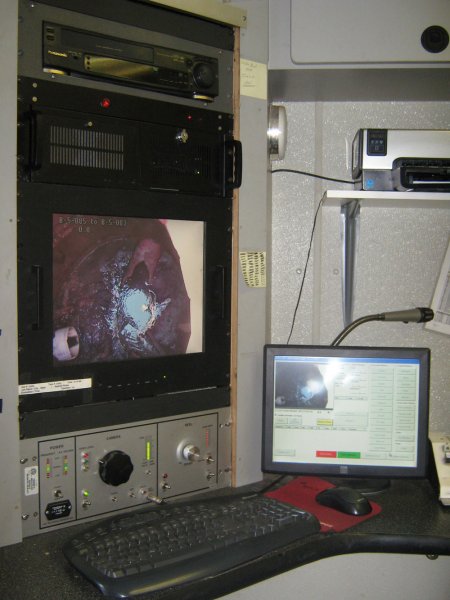

  • Video tape & CD-Rom of live footage
  • Defect coded report with recommendations
Our territory includes: Mississippi, Louisiana, Arkansas, Georgia, East Texas, West Tennessee, Alabama and Florida Panhandle.

Contact us for more info.
